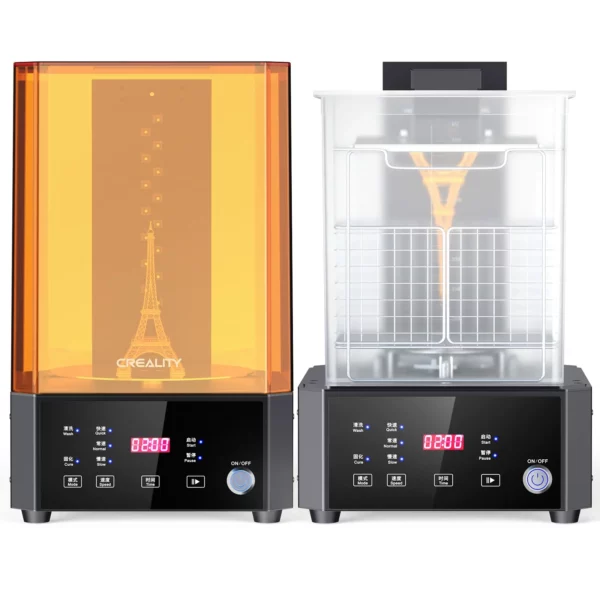

Creality UW-01 Washing and Curing Station

The Creality UW-01 Washing and Curing Station is an essential tool for anyone seeking to enhance the quality and efficiency of their resin 3D printing projects. Its comprehensive features and user-friendly design make it a valuable addition to any 3D printing setup.

Key Specifications:

• Dual Functionality: Integrates both washing and curing processes in a single machine, simplifying post-processing workflows.
• Control Method: Features a touch-sensitive control panel with an LED indicator for intuitive operation.
• Rated Power: Operates at 96W, ensuring efficient performance.
• Input Voltage: Compatible with AC110/220V 50/60Hz power sources.
• UV Light Wavelength: Equipped with 18 UV lights, combining 9 LEDs at 385nm and 9 LEDs at 405nm wavelengths, providing comprehensive curing coverage.
• Time Selection: Offers adjustable time settings ranging from 2 to 90 minutes to accommodate various project requirements.
• Washing Size: Supports models up to 170mm(L) x 120mm(W) x 160mm(H), suitable for a wide range of resin prints.
• Curing Size: Accommodates models up to 165mm(D) x 200mm(H), ensuring uniform curing for larger prints.
• Machine Dimensions: Measures 225mm(L) x 225mm(W) x 370mm(H), making it a compact addition to any workspace.
• Weight: Weighs approximately 6.5kg, ensuring stability during operation.

Additional Features:

• 360° All-Around Curing: The rotating curing platform, combined with the mirror surface treatment, ensures that models are cured uniformly from all angles.
• Flexible Washing Modes: Models can be washed either by placing them in the washing basket or by mounting the build plate directly, reducing direct contact with uncured resin.
• Adjustable Speed and Time Settings: The device offers three-speed modes and time settings ranging from 2 to 90 minutes, allowing users to customize the post-processing according to specific needs.
• Safety Features: The machine automatically pauses the curing process if the cover is removed, preventing exposure to UV light and enhancing user safety.
