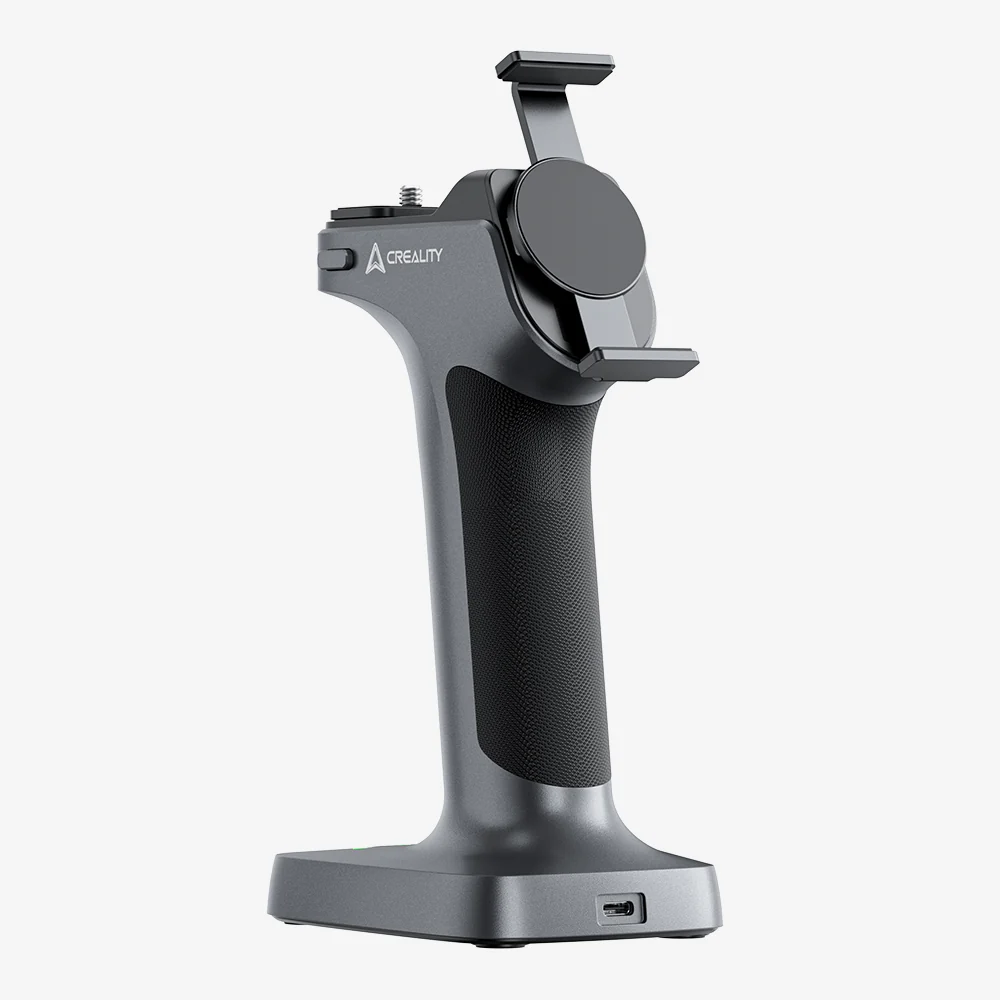

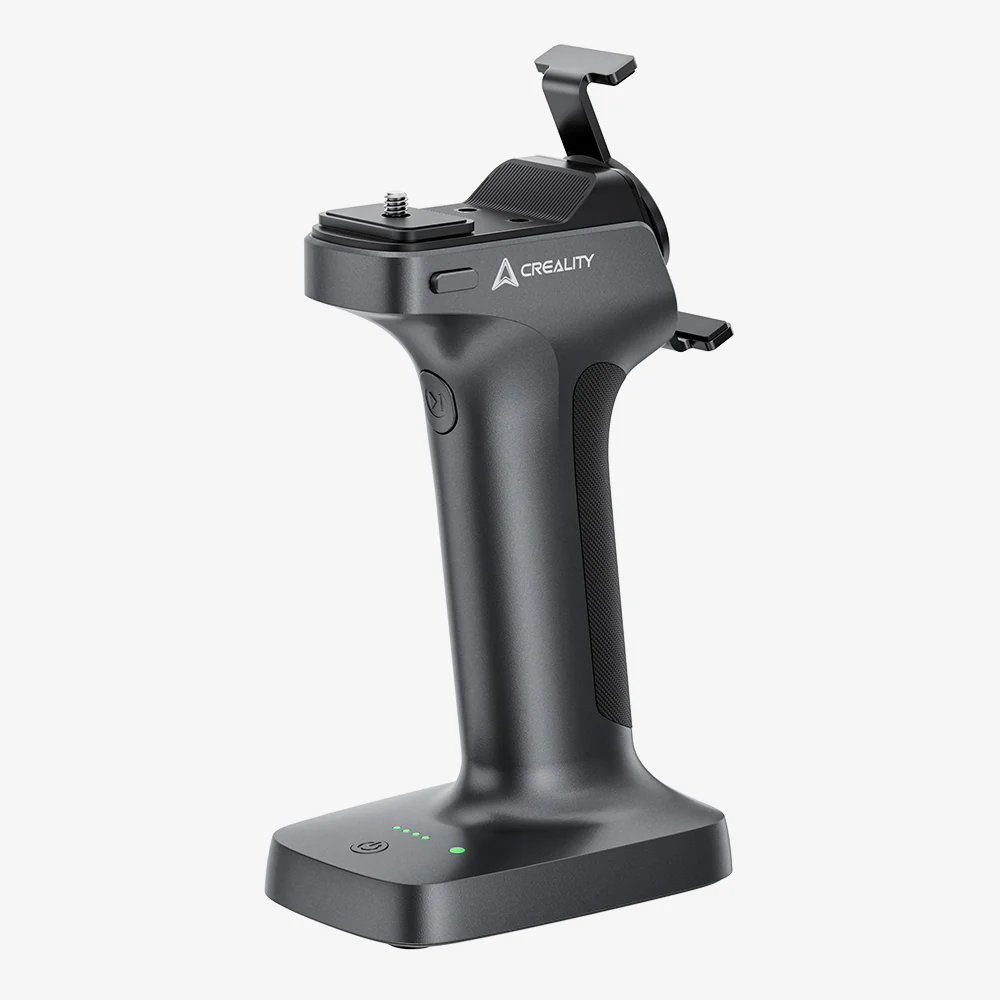

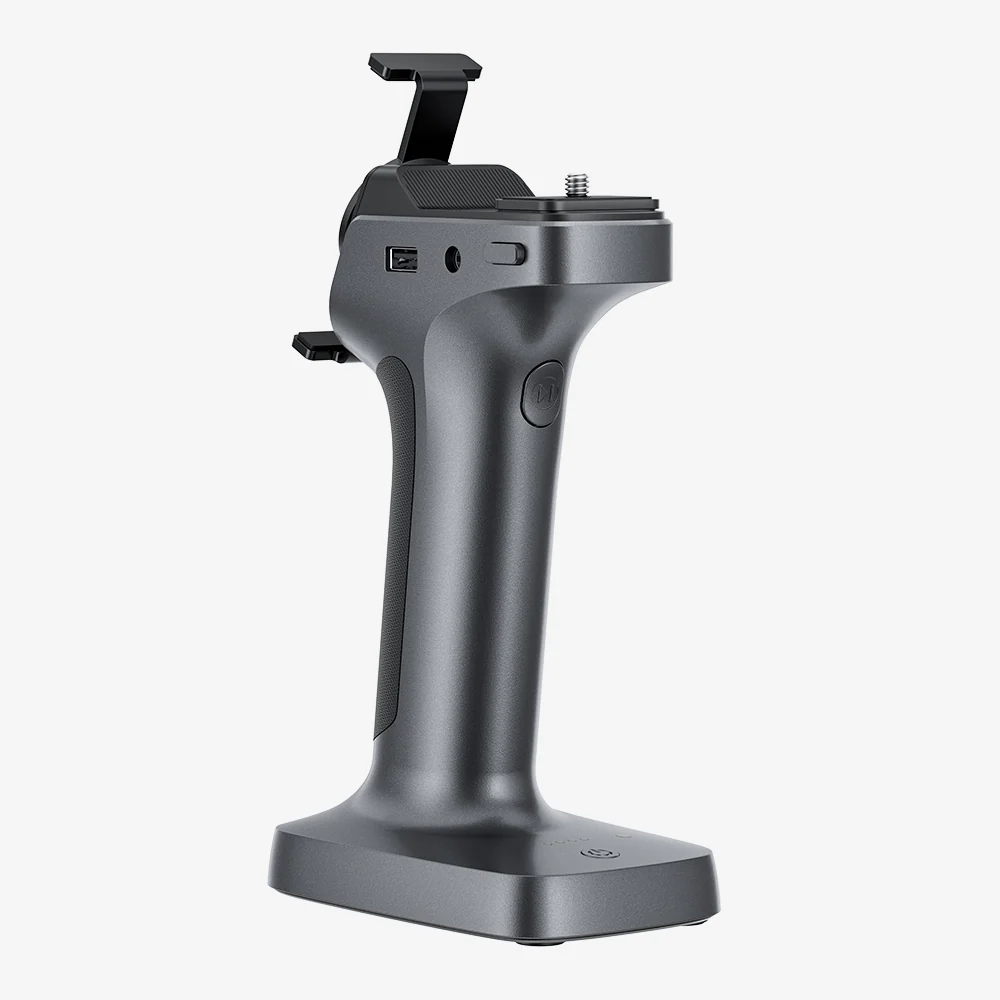

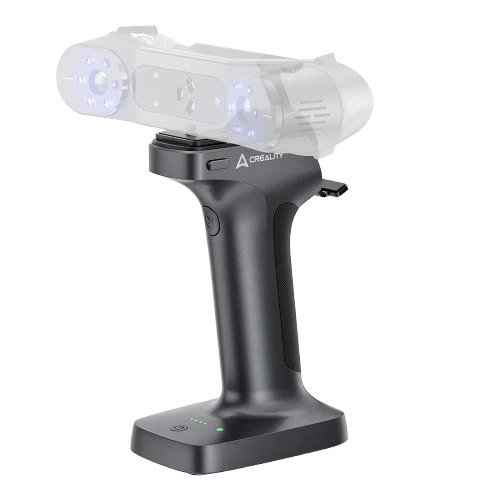

The Creality ScanBridge significantly augments the capabilities of the CR-Scan Raptor and RaptorX scanners, providing users with enhanced efficiency, mobility, and control in their 3D scanning endeavors.
Key Specifications:
- Fast Data Transmission: Utilizes Wi-Fi 6 technology coupled with an advanced lossless data compression algorithm, enabling swift transfer of scanned data from the scanner to a computer.
- Wireless Screen Mirroring: Supports real-time projection of scanned images onto mobile devices, facilitating multi-terminal collaboration for efficient 3D model inspection or demonstration.
- Ergonomic and Portable Design: Features a lightweight and compact structure, ensuring comfortable use over extended periods and ease of portability.
- High-Capacity Battery with Fast Charging: Equipped with a 36,000 mWh lithium battery, allowing up to 4 hours of continuous scanning. The device charges to 80% capacity in just 1.5 hours via a Type-C interface, enhancing convenience for outdoor scanning sessions.
- Intelligent Power-Saving: Incorporates an intelligent power-saving design that automatically powers off the device when idle, thereby conserving energy and extending battery life.
- User-Friendly Interface: Provides real-time displays of battery level, Wi-Fi connection status, and transmission rate, ensuring users are well-informed during scanning operations.
- Comprehensive Connectivity: Includes a USB-A/USB 3.0 communication interface and is compatible with the Creality Scan smartphone application, offering flexibility in data handling and device integration.
- Magnetic Phone Holder: Comes with a magnetic phone holder, facilitating easy attachment and detachment of mobile devices during scanning processes.
Technical Specifications:
- Compatible Scanners: CR-Scan Raptor, RaptorXWi-Fi Protocol: Wi-Fi 6 (backward compatible)
- Frequency Bandwidth: 5 GHz
- Transmission Rate: Up to 45 fps in laser mode; up to 20 fps in NIR mode
- Battery Type: Lithium battery
- Battery Capacity: 36,000 mWh
- Fast Charging Power: 30 W
- Fast Charging Protocols: PD/AFC/FCP
- Charging Interface: Type-C
- Communication Interface: USB-A/USB 3.0
- Power Supply Interface: DC 12V/USB 5V
- Mobile Phone Clip: Magnetic type
- Power On/Off Button: Mechanical type
- Scan/Pause Button: Mechanical type
- Dimensions: 193.7 mm x 119.8 mm x 81.7 mm
- Weight: 444 g
